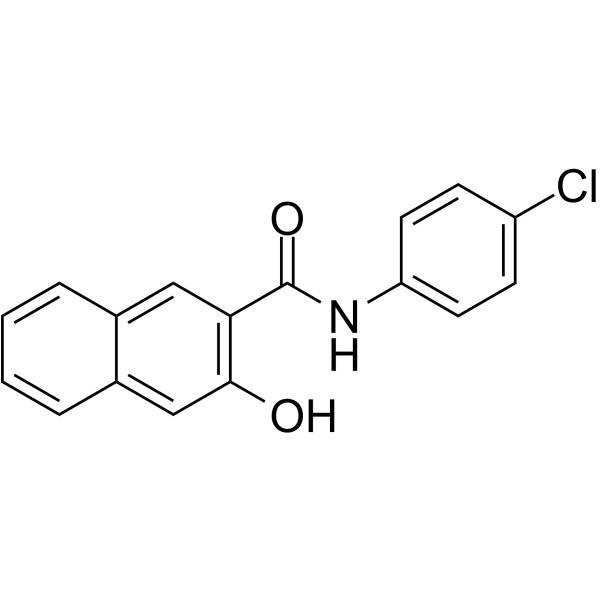

Naphthol AS-E is a potent and cell-permeable inhibitor of KIX-KID interaction. Naphthol AS-E directly binds to the KIX domain of CBP (K_d:8.6 µM), blocks the interaction between the KIX domain and the KID domain of CREB with IC₅₀ of 2.26 µM. Naphthol AS-E can be used for cancer research.

CREB (cyclic AMP-response element-binding protein) is a downstream transcription factor of a multitude of signaling pathways emanating from receptor tyrosine kinases or G-protein coupled receptors.
CREB can not be activated until it is phosphorylated at Ser133 and its subsequent binding to CREB-binding protein (CBP) through the kinase-inducible domain (KID) in CREB and KID-interacting (KIX) domain in CBP.
In a cell-based CREB Renilla luciferase reporter assay, Naphthol AS-E inhibits CREB-mediated gene transcription with an IC₅₀ of 2.29 µM. In HEK293T-based complementation assay, Naphthol AS-E dose-dependently inhibited Renilla luciferase activity with an IC₅₀ of 2.9 µM by directly binding to CBP’s KIX domain (K_d ~8.6 µM using a recombinant KIX).
Naphthol AS-E exhibits low µM activity in inhibiting the proliferation of all these cancer cells, which is consistent with its cellular CREB inhibition potency. The average GI₅₀ values for A549, MCF-7, MDA-MB-231 and MDA-MB-468 are approximately 2.9µM, 2.81µM, 2.35µM and 1.46µM, respectively.
Naphthol AS-E (2.5 µM-10 µM; 48 hours) decreases the expression of anti-apoptotic protein Bcl-2. The expression of VEGF is also decreased.

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

297.74

C₁₇H₁₂ClNO₂

92-78-4

Room temperature in continental US; may vary elsewhere.

Powder	-20°C	3 years
	4°C	2 years
In solvent	-80°C	6 months
	-20°C	1 month

In Vitro:

DMSO : 41.67 mg/mL (139.95 mM; Need ultrasonic)

*

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

In Vivo:

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: 2.5 mg/mL (8.40 mM); Suspended solution; Need ultrasonic

  此方案可获得 2.5 mg/mL (8.40 mM) 的均匀悬浊液，悬浊液可用于口服和腹腔注射。

  以 1 mL 工作液为例，取 100 μL 25.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% corn oil

  Solubility: ≥ 2.5 mg/mL (8.40 mM); Clear solution

  此方案可获得 ≥ 2.5 mg/mL (8.40 mM，饱和度未知) 的澄清溶液，此方案不适用于实验周期在半个月以上的实验。

  以 1 mL 工作液为例，取 100 μL 25.0 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中，混合均匀。

• [1]. Fuchun Xie, et al. Synthesis and Evaluation of an O-Aminated Naphthol AS-E as a Prodrug of CREB-mediated Gene Transcription Inhibition. Lett Org Chem. 2013 Jun;10(5):380-384.

  [2]. Bingbing X Li, et al. Discovery of a small-molecule inhibitor of the KIX-KID interaction. Chembiochem. 2009 Nov 23;10(17):2721-4.
