TAK-243 (MLN7243) is a first-in-class, selective ubiquitin activating enzyme, UAE (UBA1) inhibitor (IC₅₀=1 nM), which blocks ubiquitin conjugation, disrupting monoubiquitin signaling as well as global protein ubiquitination. TAK-243 (MLN7243) induces endoplasmic reticulum (ER) stress, abrogates NF-κB pathway activation and promotes apoptosis^[1][2].

IC50: 1 nM (UBA1)^[1]

TAK-243 shows anti-proliferative effect on a panel of cell lines derived from hematologic and solid tumors with variable EC₅₀ values that ranged from 0.006 µM to 1.31 µM^[1].
TAK-243 reduces growth and viability of human AML cell lines (OCI-AML2, TEX, U937 and NB4) in a concentration- and time-dependent manner with IC₅₀s ranging from 15-40 nM after treatment for 48 hours^[3].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

TAK-243 significantly delays tumor growth in mice (T/C=0.02) with no toxicity as evidenced by no changes in mouse body weight, serum chemistry, or organ histology. TAK-243 reduces primary AML tumor burden in both tested samples without toxicity^[3].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

519.52

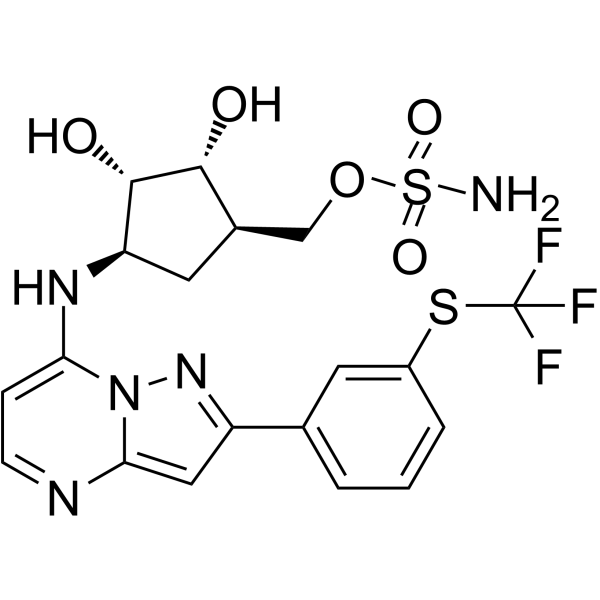

C₁₉H₂₀F₃N₅O₅S₂

1450833-55-2

Room temperature in continental US; may vary elsewhere.

DMSO : 50 mg/mL (96.24 mM; Need ultrasonic)

H₂O : 1 mg/mL (1.92 mM; Need ultrasonic)

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 2.08 mg/mL (4.00 mM); Clear solution

  此方案可获得 ≥ 2.08 mg/mL (4.00 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 20.8 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: ≥ 2.08 mg/mL (4.00 mM); Clear solution

  此方案可获得 ≥ 2.08 mg/mL (4.00 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 20.8 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明
• 3.

  请依序添加每种溶剂： 10% DMSO    90% corn oil

  Solubility: ≥ 2.08 mg/mL (4.00 mM); Clear solution

  此方案可获得 ≥ 2.08 mg/mL (4.00 mM，饱和度未知) 的澄清溶液，此方案不适用于实验周期在半个月以上的实验。

  以 1 mL 工作液为例，取 100 μL 20.8 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中，混合均匀。

• [1]. Hyer ML, et al. A small-molecule inhibitor of the ubiquitin activating enzyme for cancer treatment. Nat Med. 2018 Feb;24(2):186-193.

  [2]. Best SR, et al. TAK-243, a small molecule inhibitor of ubiquitin-activating enzyme (UAE), induces ER stress and apoptosis in diffuse large B-cell lymphoma (DLBCL) cells. Blood 2017 130:1533.

  [3]. Samir H. Barghout, et al. TAK-243 Is a Selective UBA1 Inhibitor That Displays Preclinical Activity in Acute Myeloid Leukemia (AML). Blood 2017, 130:814.

Normal keratinocytes (normal human keratinocytes (NHK) and recessive dystrophic epidermolysis bullosa keratinocytes (RDEBK)) and cSCC cell lines are seeded into 96 well plates and live cell number and cell death are analysed with an IncuCyte ZOOM real-time imager using the CellTox Green Cytotoxicity Assay. Relative EC50 values are determined using GraphPad Prism. For clonogenic assays cells are seeded into six well plates. Inhibitors (e.g., TAK-243; 0.01, 0.1, 1, and 10 μM) are added for the indicated times and then cells are maintained in drug-free medium for up to 2 weeks to allow colony formation. Colonies are fixed in 10% methanol, 10% acetic acid and stained with crystal violet^[1].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

Mice^[2]
The preclinical efficacy and toxicity of TAK-243 are assessed in mouse models of AML. OCI-AML2 cells are injected subcutaneously (sc) into SCID mice, and when tumors are palpable, mice are treated with TAK-243 (20 mg/kg sc twice weekly). As an additional model, primary AML cells from 2 patients are injected into the femurs of NOD-SCID mice. Two weeks after injection, mice are treated with TAK-243 (20 mg/kg sc twice weekly). After 3 weeks of treatment, mice ae sacrificed, and AML engraftment in the non-injected femur is measured by flow cytometry^[2].

MCE has not independently confirmed the accuracy of these methods. They are for reference only.

• [1]. Hyer ML, et al. A small-molecule inhibitor of the ubiquitin activating enzyme for cancer treatment. Nat Med. 2018 Feb;24(2):186-193.

  [2]. Best SR, et al. TAK-243, a small molecule inhibitor of ubiquitin-activating enzyme (UAE), induces ER stress and apoptosis in diffuse large B-cell lymphoma (DLBCL) cells. Blood 2017 130:1533.

  [3]. Samir H. Barghout, et al. TAK-243 Is a Selective UBA1 Inhibitor That Displays Preclinical Activity in Acute Myeloid Leukemia (AML). Blood 2017, 130:814.
