TPEN (TPEDA) is a specific cell-permeable heavy metal chelator. TPEN has a higher affinity for Zn²⁺, but a lower affinity for Mg²⁺ and Ca²⁺. TPEN induces DNA damage and increases intracellular ROS production. TPEN also inhibits cell proliferation and induces apoptosis^[1][2][3].

Heavy metal chelator TPEN attenuates fura-2 fluorescence changes induced by cadmium, mercury and methylmercury. TPEN, a cell-permeable chelator for heavy metal cations with a low affinity for Ca²⁺. In cells stimulated with 10 or 30 μM cadmium chloride, the addition of TPEN at 3 hr after exposure significantly decreases the elevated fura-2 fluorescence ratio to the basal levels within 10 min (119.6±2.4% or 109±1.5% decrease in ΔRatio (F340/F380) induced by 10 or 30 μM cadmium chloride, respectively), suggesting that a cadmium chloride-induced increase in the fura-2 fluorescence ratio is dependent on an increase in intracellular heavy metal cations but not intracellular Ca^2+[1]. TPEN is a metal chelator, which targets colon cancer cells through redox cycling of copper. TPEN reduces cell viability in a dose- and time-dependent manner. TPEN-induced cell death is also dependent on the redox cycling of copper since the copper chelator neocuproine inhibited DNA damage and reduced pChk1, γ-H2AX, and ATM protein expression. Cell death by low TPEN concentrations, involved ATM/ATR signaling in all 3 cell lines, since pre-incubation with specific inhibitors of ATM and DNA-PK led to the recovery of cells from TPEN-induced DNA damage^[2].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

424.54

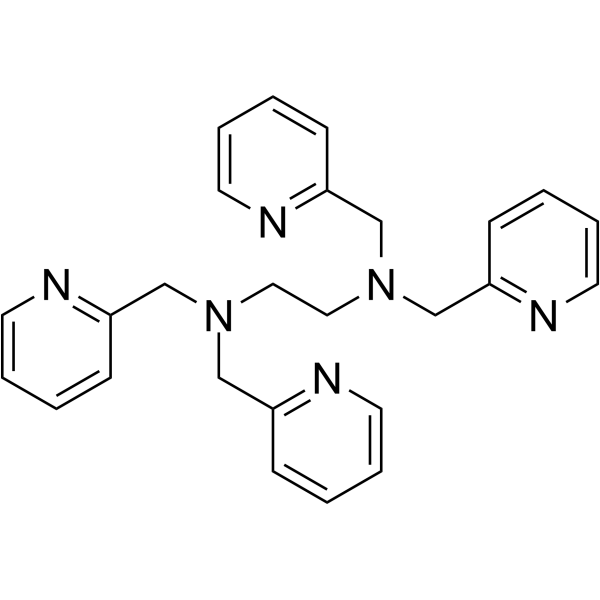

C₂₆H₂₈N₆

16858-02-9

Room temperature in continental US; may vary elsewhere.

Powder	-20°C	3 years
	4°C	2 years
In solvent	-80°C	6 months
	-20°C	1 month

In Vitro:

DMSO : 20 mg/mL (47.11 mM; Need ultrasonic)

*

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

In Vivo:

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 2 mg/mL (4.71 mM); Clear solution

  此方案可获得 ≥ 2 mg/mL (4.71 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 20.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: ≥ 2 mg/mL (4.71 mM); Clear solution

  此方案可获得 ≥ 2 mg/mL (4.71 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 20.0 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明
• 3.

  请依序添加每种溶剂： 10% DMSO    90% corn oil

  Solubility: ≥ 2 mg/mL (4.71 mM); Clear solution

  此方案可获得 ≥ 2 mg/mL (4.71 mM，饱和度未知) 的澄清溶液，此方案不适用于实验周期在半个月以上的实验。

  以 1 mL 工作液为例，取 100 μL 20.0 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中，混合均匀。

• [1]. Ohkubo M, et al. Heavy metal chelator TPEN attenuates fura-2 fluorescence changes induced by cadmium, mercury and methylmercury. J Vet Med Sci. 2016 Jun 1;78(5):761-7.

  [2]. Rahal ON, et al. Chk1 and DNA-PK mediate TPEN-induced DNA damage in a ROS dependent manner in human colon cancer cells. Cancer Biol Ther. 2016 Nov;17(11):1139-1148.

  [3]. E Aizenman, et al. Induction of neuronal apoptosis by thiol oxidation: putative role of intracellular zinc release. J Neurochem. 2000 Nov;75(5):1878-88.

Human neuroblastoma cell line SH-SY5Y, are grown in Dulbecco’s Modified Eagle’s Medium (DMEM) mixed 1:1 with Ham’s F-12 nutrient mixture containing 10% fetal bovine serum, 100 unit/mL penicillin and 100 μg/mL streptomycin at 37°C in a humidified 5% CO2 atmosphere. Two days before experimentation, cells are seeded at a density of 7×10⁴ cells/cm² in a 96-well plate. Cells in a 96-well plate are serum-starved for 4 hr; calcium indicator fura-2 is then loaded into the cells by using Calcium kit II fura-2. In brief, SH-SY5Ycells are incubated with 5 μM fura-2/AM in the presence of 0.04% Pluronic F-127, a dispersing agent to improve the efficiency of loading with fura-2, and 1.25 mM probenecid, a blocker of organic anion transport to prevent leakage of fura-2 from cells. After 1 hr incubation at 37°C, fura-2 fluorescence is measured at 500 nm emission after excitation at 340 nm (F340) or 380 nm (F380) using an Infinite M200 plate reader at 37°C.The change in [Ca²⁺]_i is reflected by the ratio of F340 and F380. To determine the changes in fura-2 fluorescence ratio induced by heavy metal compounds, cells are treated with manganese chloride, lead acetate, cadmium chloride , mercuric chloride and MeHg chloride dissolved in distilled water. We confirmed that the cells adhered to the bottom of the plate after 6 hr exposure to heavy metal compounds. The cells are also treated with three Ca²⁺ channel blockers, lanthanum chloride dissolved in distilled water, verapamil and 2-APB dissolved in DMSO, 30 min before heavy metal exposure. The heavy metal chelator TPEN is dissolved in DMSO and added 3 hr after the stimulation with heavy metals to determine the contribution of endogenous and exogenous heavy metals on fura-2 fluorescence changes. We measured the effect of TPEN (20 μM) on the fura-2 fluorescence ratio after a 10 min treatment with TPEN, since our preliminary experiments showed that the effect of TPEN on fura-2 fluorescence reached maximum and stabilized within 10 min of the treatment^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

• [1]. Ohkubo M, et al. Heavy metal chelator TPEN attenuates fura-2 fluorescence changes induced by cadmium, mercury and methylmercury. J Vet Med Sci. 2016 Jun 1;78(5):761-7.

  [2]. Rahal ON, et al. Chk1 and DNA-PK mediate TPEN-induced DNA damage in a ROS dependent manner in human colon cancer cells. Cancer Biol Ther. 2016 Nov;17(11):1139-1148.

  [3]. E Aizenman, et al. Induction of neuronal apoptosis by thiol oxidation: putative role of intracellular zinc release. J Neurochem. 2000 Nov;75(5):1878-88.
