SHP099

上海金畔生物科技有限公司为生命科学和医药研发人员提供生物活性分子抑制剂、激动剂、特异性抑制剂、化合物库、重组蛋白,专注于信号通路和疾病研究领域。

SHP099  纯度: 99.66%

SHP099是有效,选择性,有口服活性的 SHP2 抑制剂,IC50 值为70 nM。

SHP099

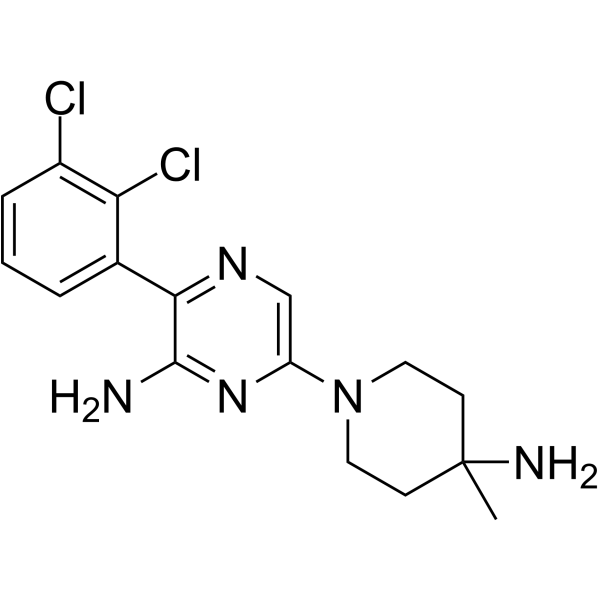

SHP099 Chemical Structure

CAS No. : 1801747-42-1

规格 价格 是否有货 数量
Free Sample (0.1-0.5 mg)   Apply now
10 mM * 1 mL in DMSO ¥620 In-stock
5 mg ¥800 In-stock
10 mg ¥1450 In-stock
50 mg ¥4800 In-stock
100 mg ¥7500 In-stock
200 mg   询价
500 mg   询价

* Please select Quantity before adding items.

SHP099 相关产品

相关化合物库:

  • Bioactive Compound Library Plus
  • Metabolism/Protease Compound Library
  • Anti-Cancer Compound Library
  • Orally Active Compound Library
  • Phosphatase Inhibitor Library

生物活性

SHP099 is a potent, selective, orally available SHP2 inhibitor with an IC50 of 70 nM[1].

IC50 & Target

IC50: 70 nM (SHP2)[1]

体外研究
(In Vitro)

The X-ray co-crystal for SHP099 with SHP2 reveals a new interaction with the basic amine and the Phe113 backbone carbonyl. SHP099 shows inhibition of cell proliferation (KYSE-520 model) with an IC50 of 1.4 μM. SHP099 shows high solubility and high permeability with no apparent efflux in Caco-2 cells[1]. SHP099 concurrently binds to the interface of the N-terminal SH2, C-terminal SH2, and protein tyrosine phosphatase domains, thus inhibiting SHP2 activity through an allosteric mechanism. SHP099 suppresses RAS–ERK signalling to inhibit the proliferation of receptor-tyrosine-kinase-driven human cancer cells[2].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

体内研究
(In Vivo)

After a single doses of 30 and 100 mg/kg (red and blue lines, respectively), dose-dependent exposure and modulation of the pharmacodynamic marker p-ERK is observed in the xenografts. A daily oral dose of 10 or 30 mg/kg yield 19% and 61% tumor growth inhibition, respectively. Tumor stasis is achieved at 100 mg/kg[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

分子量

352.26

Formula

C16H19Cl2N5

CAS 号

1801747-42-1

运输条件

Room temperature in continental US; may vary elsewhere.

储存方式
Powder -20°C 3 years
4°C 2 years
In solvent -80°C 6 months
-20°C 1 month
溶解性数据
In Vitro:

DMSO : 12 mg/mL (34.07 mM; Need ultrasonic)

H2O : 1 mg/mL (2.84 mM; Need ultrasonic)

配制储备液
浓度 溶剂体积 质量 1 mg 5 mg 10 mg
1 mM 2.8388 mL 14.1941 mL 28.3881 mL
5 mM 0.5678 mL 2.8388 mL 5.6776 mL
10 mM 0.2839 mL 1.4194 mL 2.8388 mL

*

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液;一旦配成溶液,请分装保存,避免反复冻融造成的产品失效
储备液的保存方式和期限:-80°C, 6 months; -20°C, 1 month。-80°C 储存时,请在 6 个月内使用,-20°C 储存时,请在 1 个月内使用。

In Vivo:

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液,再依次添加助溶剂:

——为保证实验结果的可靠性,澄清的储备液可以根据储存条件,适当保存;体内实验的工作液,建议您现用现配,当天使用; 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比;如在配制过程中出现沉淀、析出现象,可以通过加热和/或超声的方式助溶

  • 1.

    请依序添加每种溶剂: 0.5% CMC-Na/saline water

    Solubility: 10 mg/mL (28.39 mM); Suspended solution; Need ultrasonic

  • 2.

    请依序添加每种溶剂: 10% DMSO    40% PEG300    5% Tween-80    45% saline

    Solubility: ≥ 1.2 mg/mL (3.41 mM); Clear solution

    此方案可获得 ≥ 1.2 mg/mL (3.41 mM,饱和度未知) 的澄清溶液。

    以 1 mL 工作液为例,取 100 μL 12.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中,混合均匀;向上述体系中加入50 μL Tween-80,混合均匀;然后继续加入 450 μL生理盐水定容至 1 mL。

    将 0.9 g 氯化钠,完全溶解于 100 mL ddH₂O 中,得到澄清透明的生理盐水溶液

  • 3.

    请依序添加每种溶剂: 10% DMSO    90% (20% SBE-β-CD in saline)

    Solubility: ≥ 1.2 mg/mL (3.41 mM); Clear solution

    此方案可获得 ≥ 1.2 mg/mL (3.41 mM,饱和度未知) 的澄清溶液。

    以 1 mL 工作液为例,取 100 μL 12.0 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中,混合均匀。

    将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中,再用生理盐水定容至 10 mL,完全溶解,澄清透明
  • 4.

    请依序添加每种溶剂: 10% DMSO    90% corn oil

    Solubility: ≥ 1.2 mg/mL (3.41 mM); Clear solution

    此方案可获得 ≥ 1.2 mg/mL (3.41 mM,饱和度未知) 的澄清溶液,此方案不适用于实验周期在半个月以上的实验。

    以 1 mL 工作液为例,取 100 μL 12.0 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中,混合均匀。

  • 5.

    请依序添加每种溶剂: 5% DMSO    40% PEG300    5% Tween-80    50% saline

    Solubility: ≥ 0.67 mg/mL (1.90 mM); Clear solution

  • 6.

    请依序添加每种溶剂: 5% DMSO    95% (20% SBE-β-CD in saline)

    Solubility: ≥ 0.67 mg/mL (1.90 mM); Clear solution

  • 7.

    请依序添加每种溶剂: 1% DMSO    99% saline

    Solubility: ≥ 0.13 mg/mL (0.37 mM); Clear solution

*以上所有助溶剂都可在 上海金畔生物科技有限公司 网站选购。
参考文献
  • [1]. Garcia Fortanet J, et al. Allosteric Inhibition of SHP2: Identification of a Potent, Selective, and Orally Efficacious Phosphatase Inhibitor. J Med Chem. 2016 Sep 8;59(17):7773-82.

    [2]. Chen YN, et al. Allosteric inhibition of SHP2 phosphatase inhibits cancers driven by receptor tyrosine kinases. Nature. 2016 Jul 7;535(7610):148-52.

Kinase Assay
[1]

The inhibition of SHP2 from the tested compounds (SHP099) concentrations varying from 0.003-100 μM is monitored using an assay in which 0.5 nM of SHP2 is incubated with of 0.5 μM of peptide IRS1_pY1172(dPEG8)pY1222. After 30-60 minutes incubation at the surrogate substrate, DiFMUP is added to the reaction and incubated at 25 °C for 30 minutes. The reaction is then quenched by the addition of 5 μL of a 160 μM solution of bpV(Phen). The fluorescence signal is monitored using a microplate reader using excitation and emission wavelengths of 340 nm and 450 nm, respectively[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

Cell Assay
[1]

Cells are plated onto 96-well plates in 100 μL medium. SHP099 with various concentrations (1.25, 2.5, 5, 10, 20 μM) are added 24 h after cell plating. At day 5, 50 μL Celltiter-Glo reagent is added, and the luminescent signal is determined[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

参考文献
  • [1]. Garcia Fortanet J, et al. Allosteric Inhibition of SHP2: Identification of a Potent, Selective, and Orally Efficacious Phosphatase Inhibitor. J Med Chem. 2016 Sep 8;59(17):7773-82.

    [2]. Chen YN, et al. Allosteric inhibition of SHP2 phosphatase inhibits cancers driven by receptor tyrosine kinases. Nature. 2016 Jul 7;535(7610):148-52.
