AZ7550 Mesylate is an active metabolite of AZD9291 and inhibits the activity of IGF1R with an IC₅₀ of 1.6 μM.

IC50: 1.6 μM (IGF1R), 88 nM (MLK1), 156 nM (ACK1), 195 nM (ErbB4), 228 nM (MNK2), 302 nM (FLT3), 420 nM (ALK ), 449 nM (FES), 840 nM (IRR), 843 nM (BRK), 977 nM (BLK), 995 nM (FAK), 1256 nM (Ins R), 1317 nM (TEC), 1784 nM (FLT4), 2288 nM (PYK2), 2443 nM (Txk), 5104 nM (BTK)^[1]

AZ7550 (Compound 28) appeares to offer a broadly similar potency and selectivity profile to the parent compound AZD9291. AZ7550 inhibits double mutant (DM) cell line H1975, activating mutant (AM) cell line PC9, and wild type (WT) cell line LoVo with IC₅₀s of 45, 26, and 786 nM, respectively. AZ7550 inhibits DM antiproliferative cell line H1975, AM antiproliferative cell line PC9, and WT antiproliferative cell line Calu3 with GI₅₀s of 19, 15, and 537 nM, respectively^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

773.90

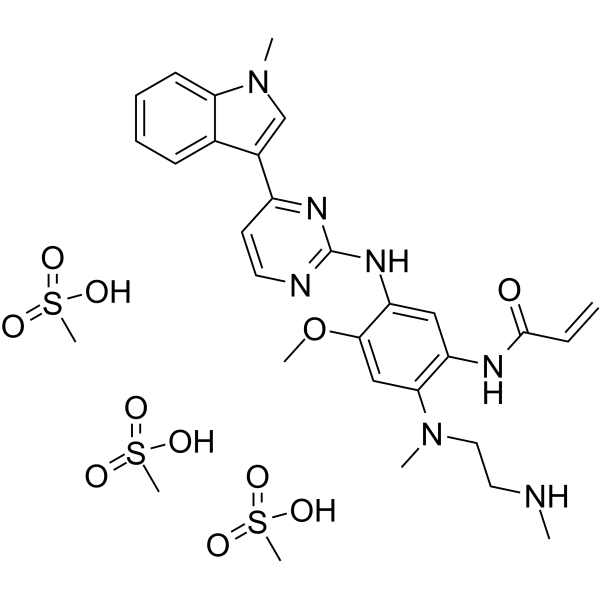

C₃₀H₄₃N₇O₁₁S₃

Room temperature in continental US; may vary elsewhere.

4°C, sealed storage, away from moisture

*In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture)

DMSO : 25 mg/mL (32.30 mM; Need ultrasonic)

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture)。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 2.5 mg/mL (3.23 mM); Clear solution

  此方案可获得 ≥ 2.5 mg/mL (3.23 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 25.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: ≥ 2.5 mg/mL (3.23 mM); Clear solution

  此方案可获得 ≥ 2.5 mg/mL (3.23 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 25.0 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明

• [1]. Finlay MR, et al. Discovery of a potent and selective EGFR inhibitor (AZD9291) of both sensitizing and T790M resistance mutations that spares the wild type form of the receptor. J Med Chem. 2014 Oct 23;57(20):8249-67.

Biochemical enzyme profiling of AZD9291 and active metabolites across the kinome panel (single profiling experiment representative of two independent studies). % inhibition for kinases in the ~280 kinase panel that shows greater than 60% inhibition after 1 μM treatment with AZD9291, AZ5104 or AZ7550, and follow-up IC₅₀s where tested, are shown. Kinases with a conserved cysteine in the analogous position within their catalytic domain as Cys797 in EGFR are also shown, highlighted in bold^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

• [1]. Finlay MR, et al. Discovery of a potent and selective EGFR inhibitor (AZD9291) of both sensitizing and T790M resistance mutations that spares the wild type form of the receptor. J Med Chem. 2014 Oct 23;57(20):8249-67.
